    Series
    M4.402

    Lifting Modules Shop-Floor Telescope

    max. lifting force 1,000 and 2,000 N
    stroke from 300 to 1,000 mm
    manual-hydraulic and electro-mechanical version
    Lifting Modules Shop-Floor Telescope
    Downloads
    Catalogue sheet
    No catalog sheets available.
    Operating instructions
    Request product
    Check Pricing and Availability
    Go to Carrlane.com
    Information Series
    Description

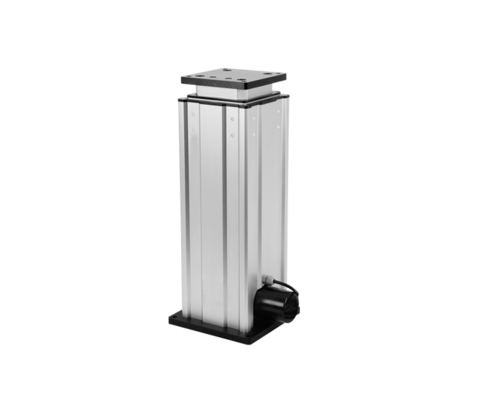

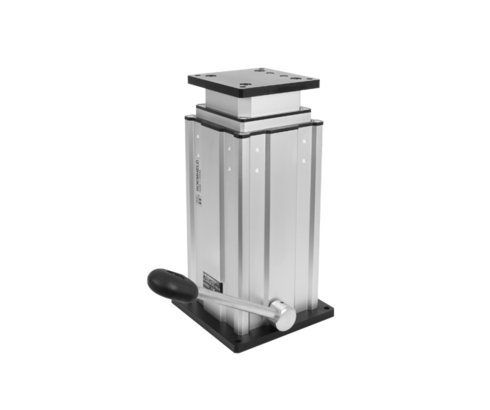

    M 4.202 Lifting module Shop-Floor Telescope

    The lifting module Shop-Floor Teleskop is particularly suitable for lifting and lowering assembly fixtures, working tables and demonstration objects in industrial applications as well as for medical treatment equipments in medi-
    cal applications.
    In general, lifting modules are used as a base unit of devices for controlled lifting and lowering of loads or for height adjustment only. This version excels particularly by the low base height and the very high strokes.

    Advantages

    • Low basic height
    • Large strokes
    • Simple and intuitive operation
    • Working in ergonomically optimum height
    • Sturdy industrial design
    • Increase of quality in manufacturing and assembly processes
    • Short amortisation time
    • Increase of assembly throughput and productivity
    • High level of safety against static overloads
    • Checked in compliance with DIN EN 1570 with quadruple static overload
