moduhub systems

for handling technology

On this page we show you some systems or functional units of moduhub components for handling technology. You can filter the systems according to the following criteria:
Industry: Industry in which the system can be used sensibly as a priority.
Function: Lifting, rotating (horizontally or vertically) and tilting or a combination of several functional axes.
Mobility: Stationary or mobile (movable) system.
Max. Load (kg): Maximum load or workpiece weight with which the system is to be loaded.

Please select:

Industries

Function

Mobility

Max. load (kg)

6400773

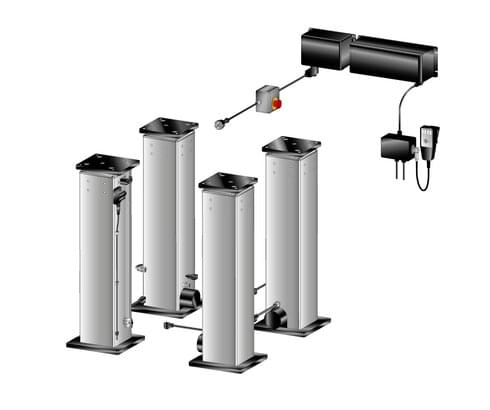

Stationary lifting system

Stationary lifting system
with adjustable limit switches and interrupter
For workpieces up to 1440 kg

Part number: 6400773

4 Shop-Floor lifting modules with 500 mm stroke, electrically driven
Adjustable end positions by means of roller switch and adjustable switch cam on one lifting module
Synchronisation via central control module
With circuit breaker in the power supply
Actuation with manual pushbutton

6400898

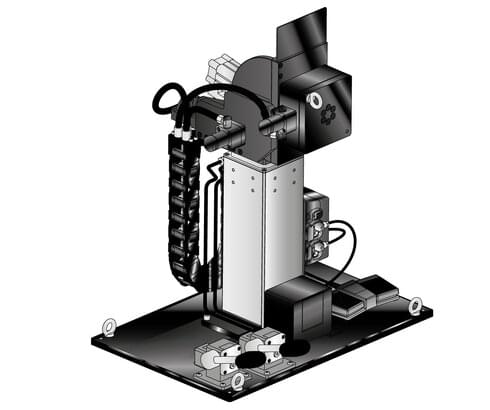

Stationary assembly station

Stationary assembly station
with the functions lifting, tilting and turning-vertical
For workpieces up to 70 kg

Part number: 6400898

Stroke 300 mm with ShopFloor lifting module with electric drive with foot switch
With tilting axis KMB, pneumatically supported
0-90° index can be released via foot pedal
With vertical rotation axis DMv
Infinite, manual rotation; index 4x90° can be released via foot pedal
Stable stand on steel base plate 500x750 mm
Media supply 230V/1P and compressed air 6 bar oiled

6400907

Mobile assembly trolley

Mobile assembly trolley
For workpieces up to 150 kg

Item number: 6400907

Electric lifting module with battery and 400 mm stroke
With vertical rotation axis DMv, infinitely rotatable
With foot pedal, manually unlockable index with 4x90
Sturdy table top in clear lacquered 50 mm beech multiplex 600x600 mm with 2 bow handles
Set-up on steel WMS 200 with brakes and 2 swivel castors and 2 fixed castors
Mains-independent power supply with a rechargeable battery system according to M8201 with memory function

6400960

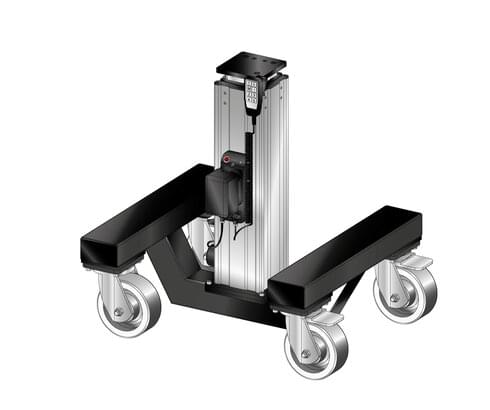

Mobile assembly trolley

Mobile assembly trolley
For workpieces up to 100 kg

Part number: 6400960

Height adjustment 1000 mm with lifting module ShopFloor telescope with electric drive with manual push-button
Set up on WMS 600 and 4 large swivel castors (200 mm), 2 of which have total brakes
Mains-independent power supply with a rechargeable battery system according to M8201

6400985

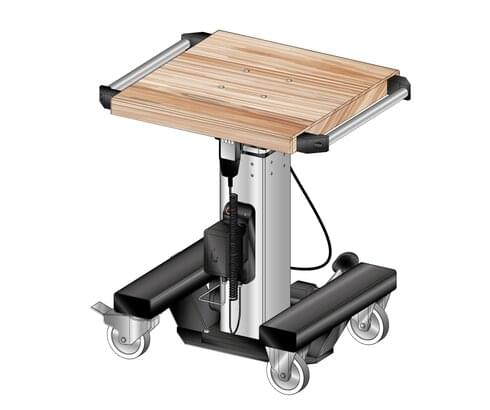

Assembly and logistics trolley

Assembly and logistics trolley
For workpiece weights up to 150 kg

Part number: 6400985

Electric lifting module with battery and 400 mm stroke
Table top can be rotated infinitely by means of DMv
Index with 4x90° manually unlockable with foot pedal
Sturdy table top in clear lacquered 50 mm beech multiplex 600x600 mm with 2 bow handles
WMS 200 steel trolley module with brakes and 2 swivel castors and 2 fixed castors
Mains-independent power supply with a rechargeable battery system according to M8201 (up-down without memory function)
