moduhub systems

for handling technology

On this page we show you some systems or functional units of moduhub components for handling technology. You can filter the systems according to the following criteria:
Industry: Industry in which the system can be used sensibly as a priority.
Function: Lifting, rotating (horizontally or vertically) and tilting or a combination of several functional axes.
Mobility: Stationary or mobile (movable) system.
Max. Load (kg): Maximum load or workpiece weight with which the system is to be loaded.

Please select:

Industries

Function

Mobility

Max. load (kg)

6400993

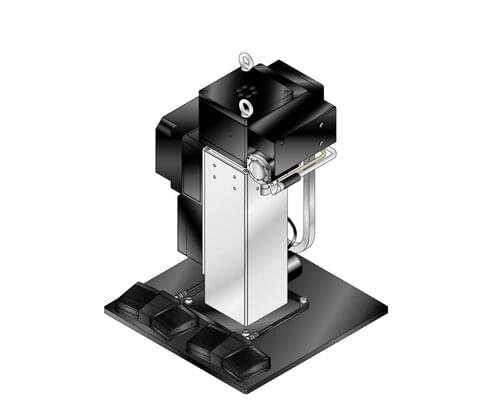

Stationary assembly station

Stationary assembly station
with lifting and turning functions
For workpieces up to 400 kg

Part number: 64009993

Stroke 300 mm with ShopFloor lifting module with electric drive
With vertical rotation axis DMve, infinite electric rotation with foot switch
Autostop every 90°
Stable stand on base plate 500x500mm made of steel

6401029

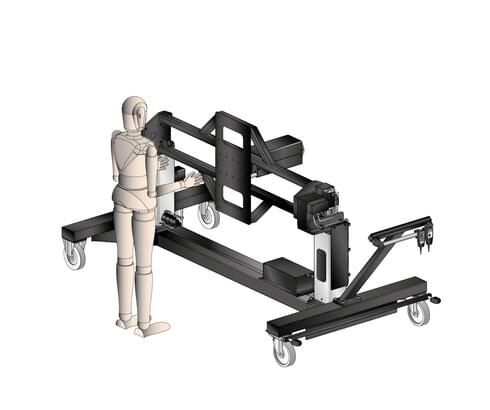

Mobile assembly and inspection station

Mobile assembly and inspection station
with the functions lifting and turning-horizontal
For workpieces up to 350 kg

Part number: 6401029 (only available on request)

Stroke 400 mm with 2 lifting modules ShopFloor in synchronisation with electric drive with manual switch
With horizontal tilting axis DMhe (max. drive torque: 200 Nm) with counter bearing with adjustable friction brake
Reversible tilting 0-90° by hand switch
Autostop in the end positions
Clamping width 1746 mm
Stable stand on welding frame with coupling brake and push handle
Power supply via 2 battery packs according to M8201

6401054

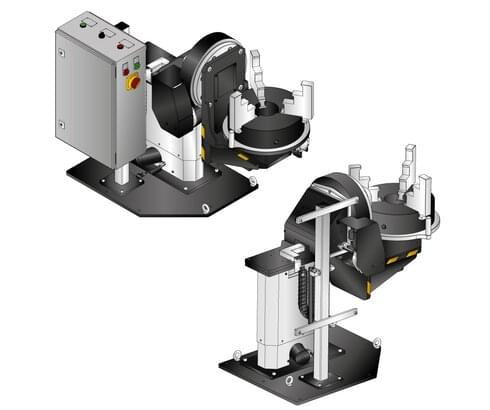

Stationary assembly station

Stationary assembly station
with the functions lifting, turning-horizontal (tilting) and turning-vertical
For workpieces up to 170 kg

Part number: 6401054

Stroke 300 mm with lifting module Twin-Strong with electric drive
With horizontal rotary axis DMhe-Solid (max. drive torque: 500 Nm)
Infinite, electric rotation; auto stop every 90°
With vertical rotation axis DMve
Infinite, electric rotation; Autostop every 90°
Stable stand on steel base plate
Central operation outside the danger zone via control panel on the control cabinet
Power supply 230V/1P

6401064

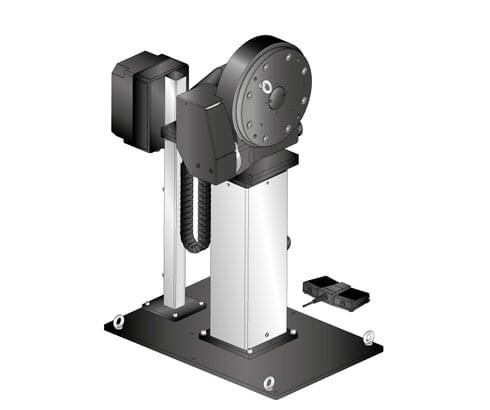

Stationary assembly station

Stationary assembly station
with the functions lifting and turning-horizontal
For workpieces up to 300 kg

Part number: 6401064

Height-adjustable stroke 400 mm with lifting module Solid (heavy-duty and very smooth-running due to roller guide) with foot pump
With horizontal rotary axis DMhe-Solid (max. drive torque: 500 Nm)
Infinite, electric rotation via foot switch
Autostop every 90°
Stable stand on 500x750 mm steel base plate

6401104

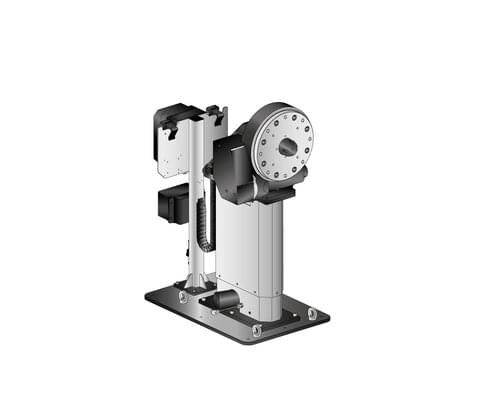

Stationary assembly station

Stationary assembly station
with the functions lifting and turning-horizontal
For workpieces up to 450 kg

Part number: 6401104

Stroke 400 mm with lifting module TwinStrong with electric drive with manual push-button
With horizontal rotary axis DMhe-Solid (max. drive torque: 500 Nm)
Infinite, electric rotation via foot switch
Autostop every 90°
With centring pin for easier retooling of workpieces or fixtures
Stable stand on 500x750 mm steel base plate
