Base plates

for moduhub lifting modules

Downloads

Catalogue sheet

No catalog sheets available.

Operating instructions

Available on demand.

Request product

Check Pricing and Availability

Go to Carrlane.com

Information Series

Description

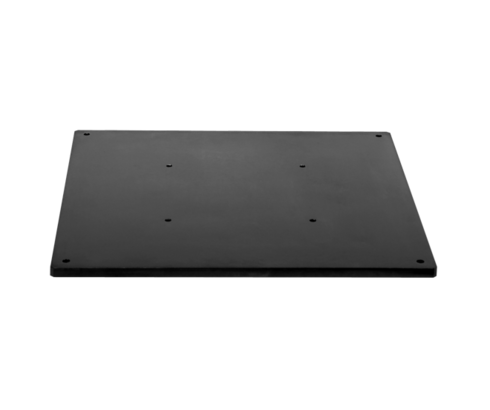

M 8.100 Base plates

for moduhub lifting modules
Base plates are primarily used with lifting modules. They are screwed to the lifting module and the floor to get a larger support surface and an increased stability of the lifting module. The use of base plates is especially recommended for uneven sub-floors and high moment loads.

Versions

Base plate 500 x 500 mm with single interface 200 x 200
Base plate 600 x 250 mm with single interface 200 x 200
Base plate 750 x 500 mm with single and double interface 200 x 200

Products (3)

Number

Item no.	CAD data	type	type
Item no. 6311412	CAD data	type base plate	type 500 x 500 mm	Properties
Item no. 6311460	CAD data	type base plate	type 750 x 500 mm	Properties
Item no. 6312161	CAD data	type base plate	type 600 x 250 mm	Properties

Application examples

Application example Base plate

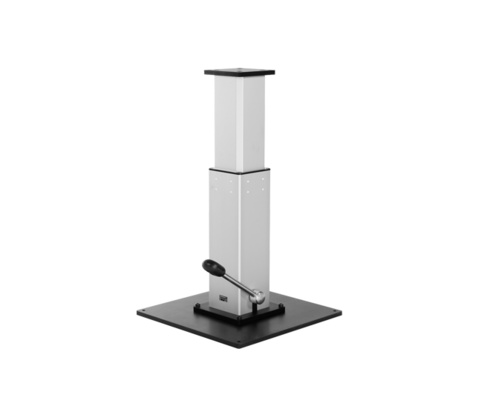

Lifting module Shop-Floor with base plate
