Bearing press

Joining process
The assembly process takes place in four steps: First, the bearing is placed on the bearing holder, then the tie rod is passed through the bearing bore and the counterholder is placed on the end of it. The counterholder is held on the tie rod by a spring-loaded contact piece. The cylinder is then retracted so that the bearing is pulled into the bore hole. Customised contact pieces can also be manufactured if required.

Control function
The pulling force is adjusted by a pressure switch on the power unit. Two switchable force levels can be preset.
Setting mode
Retraction and extension using two-hand operation, direction preselection via rotary switch.
Automatic mode
The cylinder retracts until the set force is reached and then automatically reverses direction and returns to the off-position.

Delivery

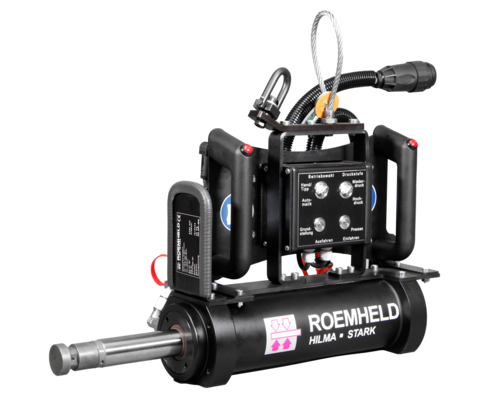

• Pull-in cylinder

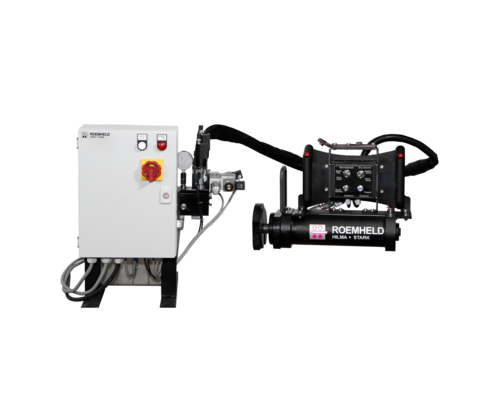

• Power unit with control unit
Not included in our delivery are the hydraulic hoses and cables, which must be ordered separately as accessories depending on the
length as well as other accessories.

Accessories
• Balancer for suspension
• Bearing holder
• Counterholder with contact pieces
• Hydraulic hoses
• Cables
• Velcro protective hose
• Quick-disconnect coupling

● Easy to use thanks to suspension on a balancer (available as an accessory)
● High safety standard through compliance with the Machinery Directive
● Process reliability thanks to adjustable joining forces and automatic sequence
● Low noise level
● For bearings with an inner diameter of at least 40 mm and a maximum outer diameter of 145 mm
